BJ3N (Pléiades Neo 3 & 4) BAND COMBINATIONS 波段組合

The resolution of BJ3N (Pléiades Neo 3 & 4) panchromatic images is 30cm. BJ3N (Pléiades Neo 3 & 4) 全色圖像的解像度為30厘米。

The resolution of the BJ3N (Pléiades Neo 3 & 4) image at multispectral bands is 1.2m. 這張BJ3N (Pléiades Neo 3 & 4) 多光譜圖像的解像度為1.2米。


BJ3N (Pléiades Neo 3 & 4) image acquired near the Lok Ma Chau Loop, Hong Kong. (Date: 26 Feb 2022)
在香港落馬洲河套區附近獲取的 BJ3N (Pléiades Neo 3 & 4) 圖像。(日期:2022 年 2 月 26 日)

Let's try to find those common band combinations applied to BJ3N (Pléiades Neo 3 & 4)!
試著找出應用於BJ3N (Pléiades Neo 3 & 4)的那些常見波段組合!

BJ3N (Pléiades Neo 3 & 4) is an Earth observation satellite operated by Airbus with a spatial resolution of 1.2 meters in multispectral bands and 30 centimeters in panchromatic band. In this demonstration, the panchromatic data is not used to pansharpen the multispectral image. Working with multispectral images enables us to reveal information that is beyond human vision. For example, the Near Infrared (NIR) wavelength is commonly used to distinguish vegetation varieties and conditions because vegetation gives a strong reflection in this portion of the electromagnetic spectrum. Let's try the following band combinations and know more about their application: (4,3,2), (6,4,3).
You could also try the following combinations to know more about each band and its application. (1,1,1), (2,2,2), (3,3,3), (4,4,4), (5,5,5), (6,6,6)

Let's try hover your mouse cursor over the image to zoom into the Lok Ma Chau Loop!
BJ3N (Pléiades Neo 3 & 4)是由Airbus操作的地球觀測衛星,可在可見光和NIR波段以1.2米的空間解像度提供圖像,並於全色波段以30厘米的空間解像度提供圖像。本次示範中,全色波段未有用於pansharen多光譜圖像。多光譜圖像使我們能夠揭示超出人類視覺範圍的信息。例如,近紅外(NIR)波長通常用於區分植被種類和狀況,因為植被在這一波段會產生強烈反射。 嘗試以下的波段組合,來了解更多關於這些波段組合的應用。 (4,3,2), (6,4,3)
您也可以嘗試以下的波段組合,來了解更多關於每個波段的功能和應用。 (1,1,1), (2,2,2), (3,3,3), (4,4,4), (5,5,5), (6,6,6)

Which band combinations show the following more clearly? 哪些波段組合更清楚地顯示了以下內容?

  1. Reservoir location 池塘位置
  2. Vegetation distribution 植被分佈
  3. Built-up area location 房屋密集區位置

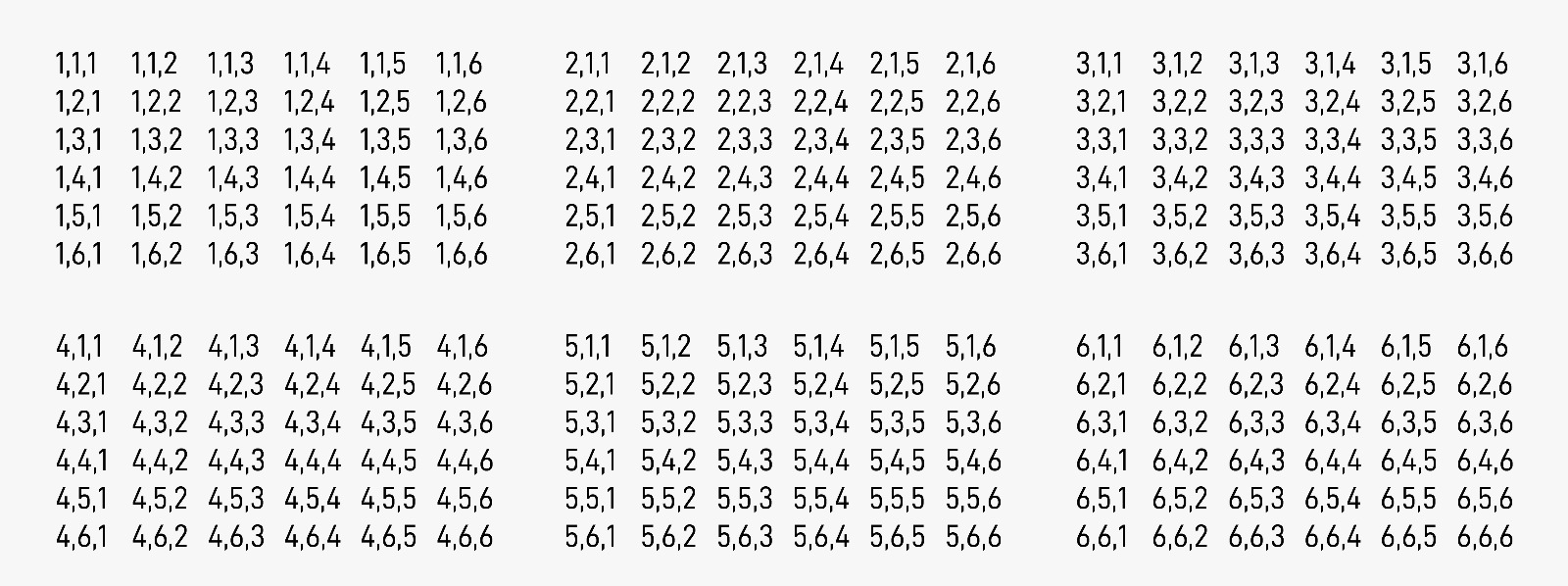

Three bands are combined to form an image composite. 三個波段組合形成圖像合成

Different combinations reveal different details. 不同的組合揭示不同的細節。
Red Channel 紅色通道
Green Channel 綠色通道
Blue Channel 藍色通道

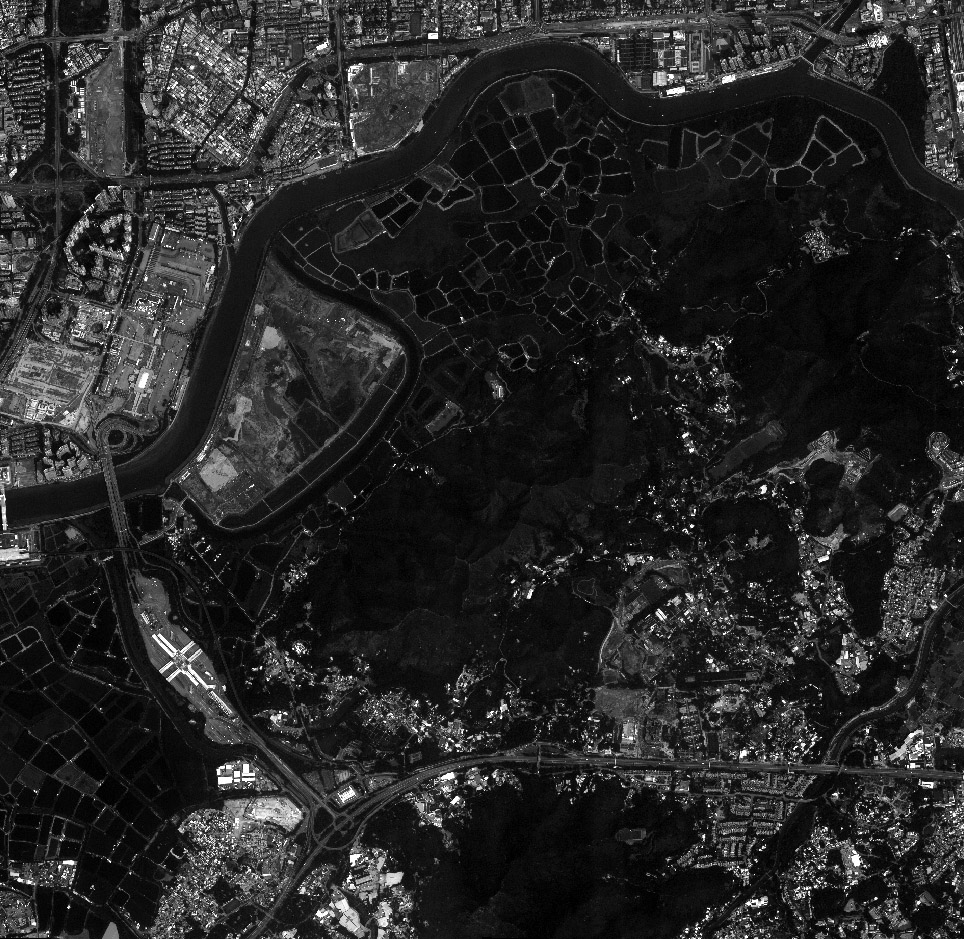

Band 1 Coastal (1, 1, 1) 海岸波段

Band 1 senses deep blues and violets. Blue light is hard to collect from space because it’s scattered easily by tiny bits of dust and water in the air, and even by air molecules themselves. It is also called the coastal/aerosol band, after its two main uses: imaging shallow water, and tracking fine particles like dust and smoke.
波段 1 感知深藍色和紫色。藍光很難從太空收集,因為它很容易被空氣中的微小灰塵和水甚至空氣分子本身散射。它也被稱為沿海/氣溶波段,主要有兩個用途:對淺水成像,以及追蹤灰塵和煙霧等細顆粒。
